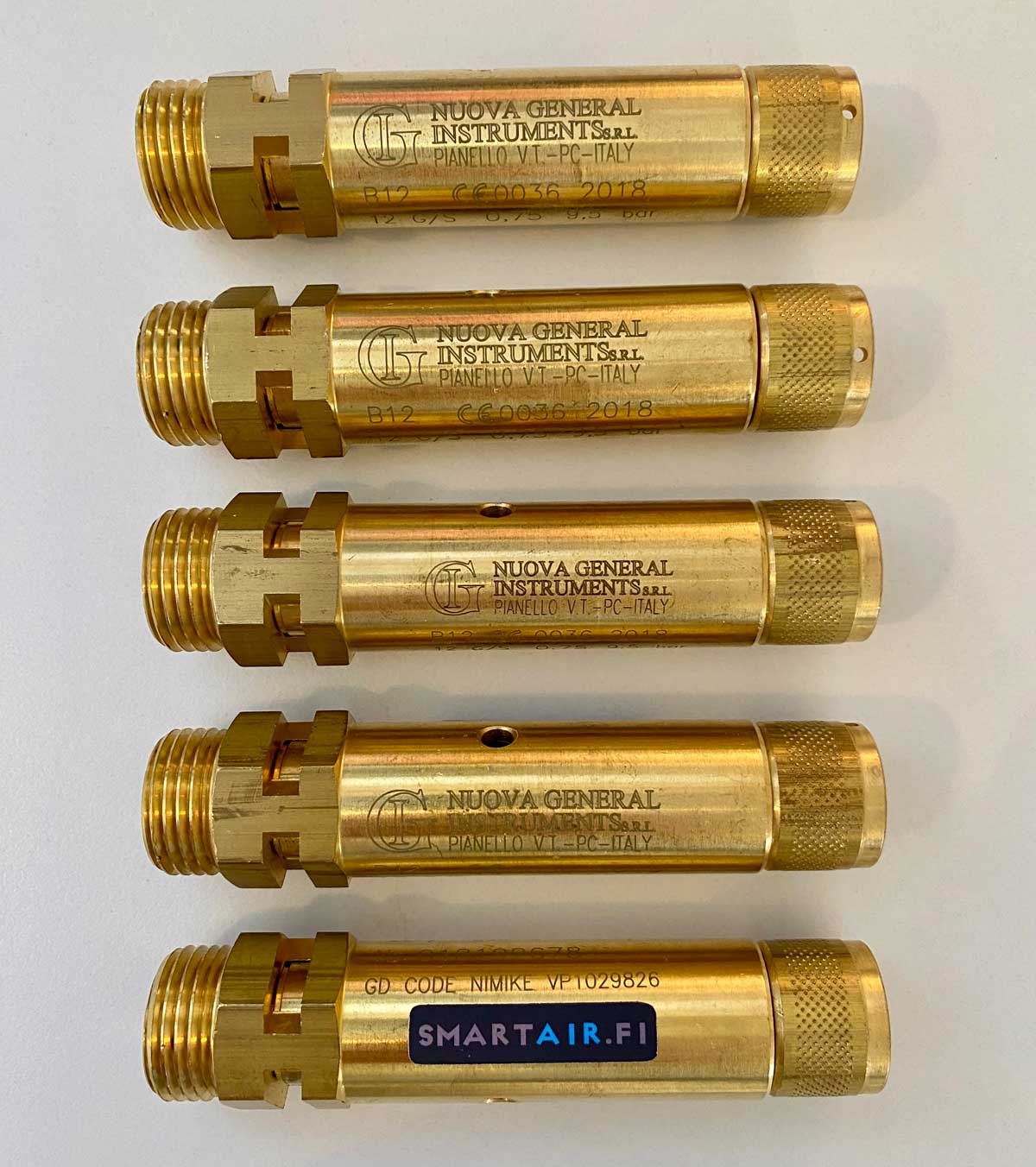

NUOVA B12 G1/2″ 14.0 BAR Viton, -20…+200 °C, max. 15.8 m³/min
Type: B12-14
Exhaust capacity (to atmosphere): 1222.5 kg/h, 945.6 Nm3/h, 15.7 m3/min
Medium: Air
Operating temperature: -20 / +200 °C
Setting pressure range: 14-18 bar(g) (setting pressure information must be stated when ordering)
Connection size: G1/2” UK ISO 228
Pressure class: PN40
Manufacturer: Nuova General Instruments srl
Documents: Declaration of Conformity
Condition: Free with supplier
Delivery time: 3-5 days with intermediate sales reservations
99,00 € (VAT 0%)
Additional information
-This is a spring-loaded full-lift safety valve, suitable for overpressure protection of compressed air and other suitable gases.
-The valve body is made of brass or stainless steel.
-The valve's available setting pressure range is 14-18 bar(g) and the valve's operating temperature range is -20/+200 °C.
-The year of manufacture is recorded on the product and it is equipped with a unique serial number.
Compliance:
-The valve is designed, manufactured and tested in accordance with Directive 2014/68/EU (Class IV, Module
H1) as per.
-The device has passed the final inspection and the hydraulic pressure test of the frame 1.5 x PN-
under pressure.
Installation and use:
-The user is responsible for the compatibility of the valve and materials
with process conditions.
-The valve should be installed in a location where it is protected from impacts and external influences.
-When installing, ensure that no excessive stress is placed on the valve.
from the pipeline.
-The factory seal must not be broken, as this will void the warranty.
-Service and maintenance:
The valve does not require lubrication, but it must be kept clean. The condition and functionality of the valve must be checked regularly in accordance with the operating conditions and the requirements in force in the country of installation. During the inspection, special attention must be paid to possible leakage, corrosion, contamination, mechanical damage and the unobstructed discharge opening. A damaged or unsafe safety valve must be taken out of service and inspected or replaced.
