DIMENSIONING &
DESIGN
We provide compressed air system dimensioning and design services together with our design team. Compressed air system design can be mainly divided into two different sections, replacement investments and design work for existing compressed air systems, and so-called Green field projects, where a new modern compressor station is dimensioned and designed for a new plant in the design phase.
Typically, the design work of compressed air systems consists of experts and specialists from several areas. Mechanical designers calculate the location, platform, load capacity and layout. The task of piping designers is to design the system's piping work in the equipment room and in the production hall all the way to the points of use. Ventilation design, on the other hand, requires new types of experts and calculators. In order to get a new compressed air system ready for use, the most important utility is needed, namely electricity and electrical design.
As we can see from this, we have a fairly large group of experts and designers at hand.
Only in very rare cases is there an expert in the overall system and an expert specializing in compressed air, whose contribution is critical and of great importance in terms of cost.
Our company's offering covers all of the above-mentioned design requirements and services, and we are available directly for the design work of end customers' compressed air systems, from the compressor station through the network directly to the points of use.
Design and engineering firms can also use our services as a subcontractor for their own comprehensive projects. We can act as a project manager, a supplier of one or more areas, or always as a comprehensive provider of design services.
We provide the following design services:
✓ dimensioning
✓ mechanical

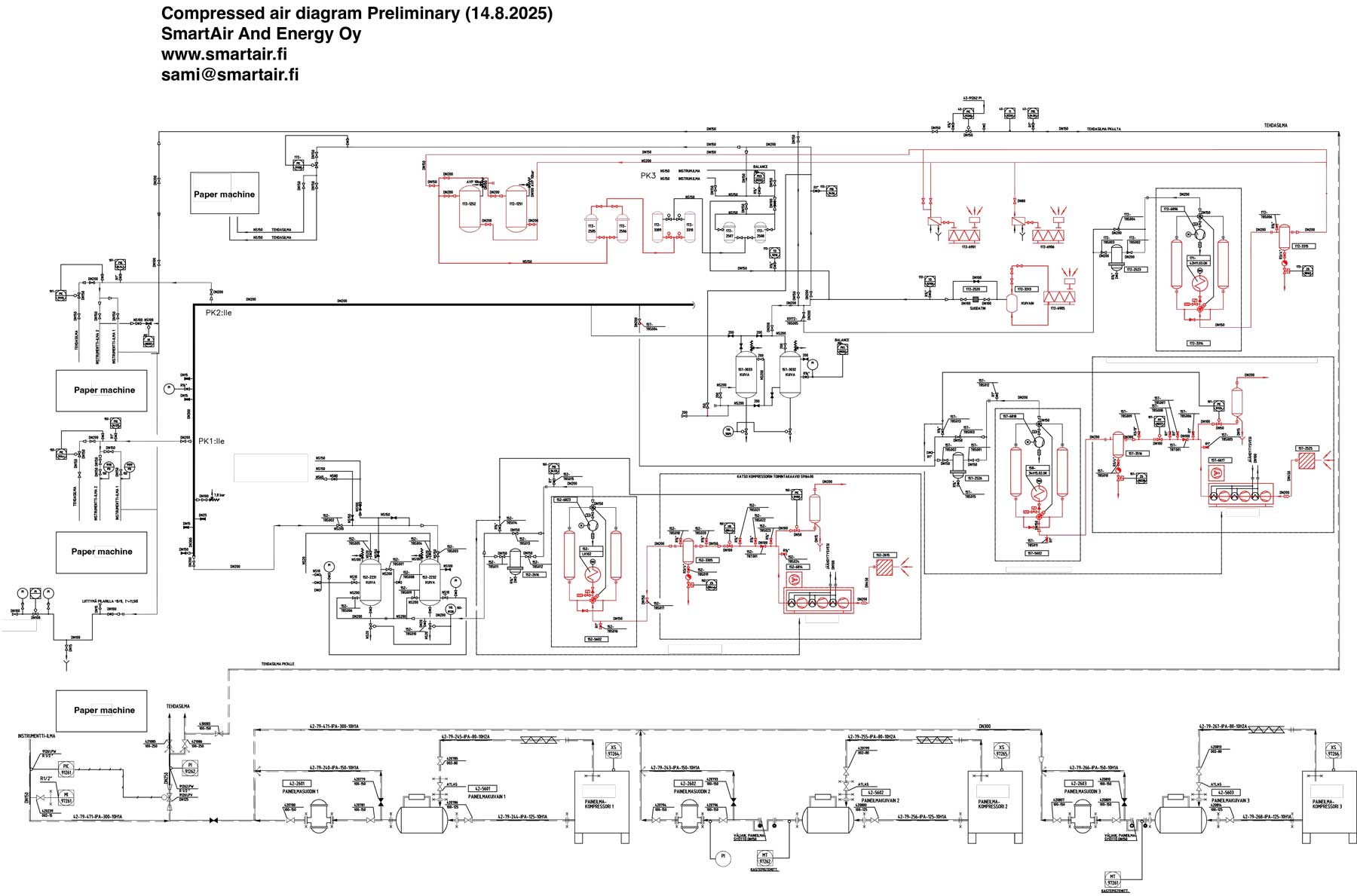

✓ layout and PI charts
✓ piping
✓ electric
✓ automation
✓ ventilation
✓ heat recovery
✓ instrumentation
✓ IoT
✓ ISO50001 implementation
✓ compressed air container design
✓ compressed air quantity and quality; flow, volume, pressure, dew point and temperature
